Introduction to the operation specification of automatic granule packing machine
Let's share the operating specifications of the fully automatic granule packing machine as follows:
1. The powder automatic packaging machine checks whether the specifications of the cup and the bag maker match the requirements before starting the machine.
2. Dial the main motor belt by hand to see if the machine is running flexibly. After confirming that the machine has no abnormal conditions, it can be powered on.
3. Under the powder automatic packaging machine, the packaging material is placed between the two paper rollers, which is placed in the groove of the paper arm of the machine. The paper stopper should clamp the core of the material to make the packaging material and system. The bag is aligned, then tighten the knob on the cover and ensure that the printed side faces forward or the composite side (ie polyethylene side) faces backwards.
4. Turn on the main power switch, press the clutch handle, separate the metering mechanism from the main drive, turn on the start switch, and the machine runs dry.
5. If the conveyor belt rotates clockwise, stop immediately. At this time, the main motor is reversed. After the motor is inverted, the belt is rotated counterclockwise.
6. Set the temperature and set the heat sealing temperature on the temperature controller of the electric control box according to the packaging materials used.
7. Adjust the length of the bag. Put the packaging material into the bag-making device according to the relevant regulations, clamp it between the two rollers, rotate the roller, and pull the packaging material below the cutter. After reaching the set temperature for 2 minutes, turn on the start switch. Loosen the lock nut of the bag length adjustment screw.

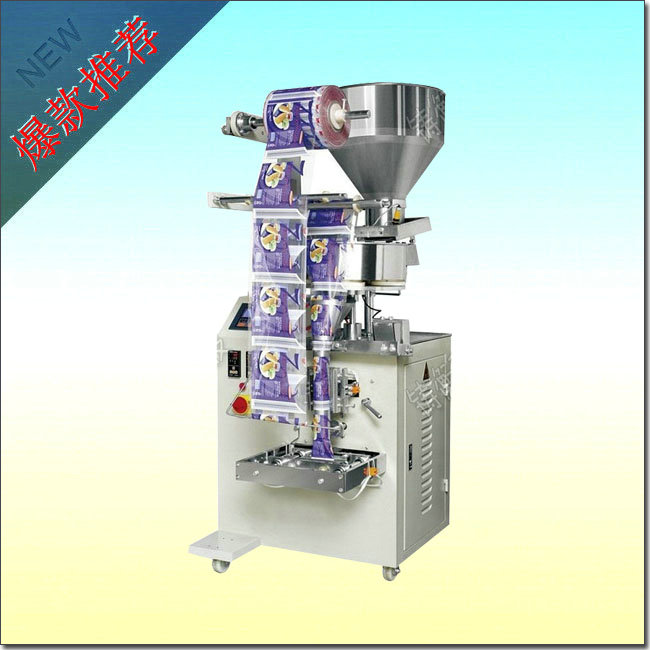

Automatic granule packing machine picture:
