Laminar Flow Cabinet is make local air environment with high degree of cleanliness, equipment, air flow for horizontal and Vertical Laminar Flow in two forms. It is widely used in the semiconductor industry, precision instruments, meters, electronic components, optical instruments, chemical industry, smelting purification, magnetic materials, microbial research, medicine and health care, scientific research departments and so on. To improve the product yield, precision, stability, reliability, has a significant role.
Parameter\Model
SW-CJ-1D
SW-CJ-2D
Clean grade
100 Grade@≥0.5μm (209E)
Number of bacteria
≤0.5 per utensil.hour (¢ <90mm> utensil)
Average wind speed
0.3~<0.6m>/s (adjustable)
noise
≤62dB
Half peak value of shaking of shaking
≤5μm
Illumination
≥300Lx
Power supply
AC single-phase 220V/50H
Max. power consumption
0.4KW
0.8KW
Weight
85kg
150 kg
Dimension of working area
700×500×500(W×D×H)mm
1300×570×1600(W×D×H)mm
Overall dimension
850×570×1550(W×D×H)mm
1150×500×500((W×D×H)mm
Specification and number of high effective filter
760*610*50*
610*610*50*
Specification and number of light from firefly/ ultraviolet light
20W*
30W*
Suitable number
Single
Double

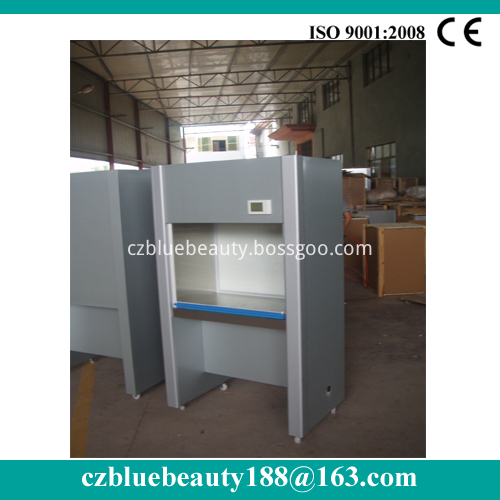

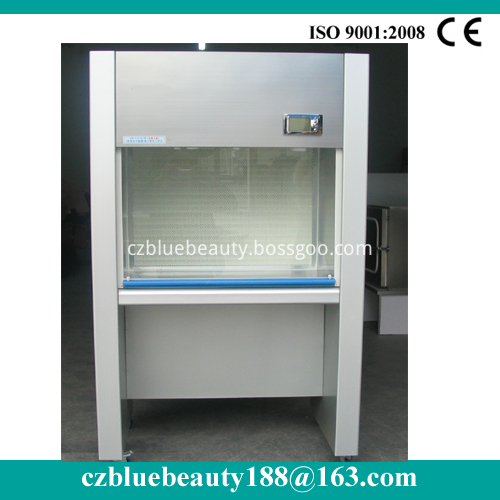

Vertical Laminar Flow
Vertical Laminar Flow,Laminar Air Flow ,Vertical Laminar Flow Hood ,Vertical Flow Hood
